• Lipo Battery reference

    lipo battery gpy power expansion board
    4
    0 Votes
    4 Posts
    2k Views
    G
    @seb Thanks a lot for quick response!
  • This topic is deleted!

    1
    0 Votes
    1 Posts
    1 Views
    No one has replied
  • Pyscan availability

    pyscan
    3
    0 Votes
    3 Posts
    915 Views
    P
    @jmarcelino Okay, thanks. I've missed that one. Can you tell me what kind of chip is used on pyscan board for NFC/RFID?
  • Pysense temperature and humidity not correct

    pysense
    9
    0 Votes
    9 Posts
    3k Views
    catalinC
    hi guys, Temperature compensation is probably a polynomial function: a first degree, T_ambient = a * T_sensor + b, and for this 2 points should be measured (ambient and sensor temperature) in order to find 'a' and 'b' coefficients maybe for some designs a 2nd degree is a better model, and in this case 3 points are required to find the 3 coefficients This is points can be easily found reading the sensor temperature. The rest can be done in with a piece of paper, or Excel(Trendline) or Matlab/Octave. To understand more, here is a general description of the compensation methods, for the SI sensor: https://www.silabs.com/documents/public/application-notes/AN1026-Si70xx-Temp-Sensor-Designers-Guide.pdf
  • Charging from Solar via the Expansion Board

    expansion board solar panel
    6
    0 Votes
    6 Posts
    2k Views
    A
    @maamar i've a strange behaviour: main.py from pysense import Pysense from MPL3115A2 import MPL3115A2 from SI7006A20 import SI7006A20 from LTR329ALS01 import LTR329ALS01 from network import Sigfox import socket import time import struct import network wlan = network.WLAN(); wlan.deinit(); while True: py = Pysense(); mp = MPL3115A2(); si = SI7006A20(); lt = LTR329ALS01(); sigfox = Sigfox(mode=Sigfox.SIGFOX, rcz=Sigfox.RCZ1); #temperature -10000 - 10000 temp = int(round(si.temperature()*100,2)); #humidity 10000 - 0 hum = int(round(si.humidity()*100,0)); #pressure -13000 - 8560 pres = int(round(mp.pressure(),0))-100000; #blue light blue = lt.light()[0]; #red light red = lt.light()[1]; #message message = bytes(struct.pack('>hhhhh',temp,hum,pres,blue,red)); s = socket.socket(socket.AF_SIGFOX, socket.SOCK_RAW); s.setblocking(True); s.setsockopt(socket.SOL_SIGFOX, socket.SO_RX, False); s.send(message); s.close(); py.setup_sleep(60); py.go_to_sleep(); If i supply the pysense by usb all works fine, but if i supply it by 5V and GND (first and second pin on the top rigth corner) the Sipy sends only one message. Do you have any suggestions?
  • Lipo Charging and Power Left Measurement

    lopy lipo charge
    3
    0 Votes
    3 Posts
    2k Views
    B
    My suggestion? Don't bother with ADC measurement. Get a "gas gauge" breakout, like the one from SparkFun: https://www.sparkfun.com/products/10617 I've created a thread with feature suggestions for the various expansion boards. One thing I'd like to see is the gas gauge IC integrated to all boards; preferably the MAX17048 (which is a newer, more power-efficient version of the IC on the previously-mentioned breakout). Forum thread here: https://forum.pycom.io/topic/2476/expansion-board-suggestions
  • Easy Way to Tell what Expansion Board is in Use ?

    identification
    3
    0 Votes
    3 Posts
    715 Views
    ahaw021A
    @livius -- thanks so much code i used is below from pycoproc import Pycoproc expansion_identififer = Pycoproc() expansion_identififer.read_product_id() looks like: Pysense product_id = 61458 Pytrack product_id = 61459 I also inserted the Pysense example code after and it runs with no issues which is what I wanted. [image: 1516177982454-290c084a-519f-468b-b05e-ca6a4646c60d-image.png] [image: 1516178030775-ede60e62-4e39-44aa-ba38-7c2fd2f53bdc-image.png] Andrei
  • can't load pysense library

    pysense lopy
    4
    0 Votes
    4 Posts
    2k Views
    B
    @jmetzner I'm glad it works, the documentation is off in a lot of places.
  • This topic is deleted!

    1
    1
    0 Votes
    1 Posts
    3 Views
    No one has replied
  • 0 Votes
    5 Posts
    1k Views
    J
    @robin UART0 is a bit special - need to look into that myself - but you can easily redefine the UART1 pins (and UART2 unless on the GPy/FiPy)
  • cant tell if its a pysence or pytrack... upgrade failed'

    pytrack usb fipy
    3
    0 Votes
    3 Posts
    837 Views
    L
    @jmarcelino said in cant tell if its a pysence or pytrack... upgrade failed': dfu-util-static.exe -D pytrack_0.0.8.dfu Thank you, the USB upgrade I was using was from an old post. Your zip process worked, and the upgrade was successful. Thanks
  • 0 Votes
    3 Posts
    1k Views
    megabyteM
    @robert-hh Thanks for the detailed reply and clarifying that it's DTR and RTS!
  • Deep Sleep Shield

    pytrack pysense deepsleep deep sleep pycom
    2
    1
    0 Votes
    2 Posts
    989 Views
    J
    @gruia-nichita You don’t need the deep sleep shield on the Pysense/Pytrack, that functionality is built in.
  • Need Expansion Board to run?

    expansion board deep sleep sipy
    4
    0 Votes
    4 Posts
    1k Views
    T
    It is indeed mentioned in this post. So I'll be able to get rid of the expansion board but not the deep sleep shield for it to be fully efficient That's exactly what I was thinking but I wanted to be sure about especially about the current since it worked but I was sure there will still be current consumption problems without the shield. Thank you for your fast reply, this will reduce the size of my project.
  • I2C at expansion board

    i2c expansion board lopy
    8
    1
    0 Votes
    8 Posts
    2k Views
    ledbelly2142L
    @lopyusr I apologize, I misunderstood. I provided too much info on something not your issue. I'm assuming you are using this driver and example: HERE And documentation HERE

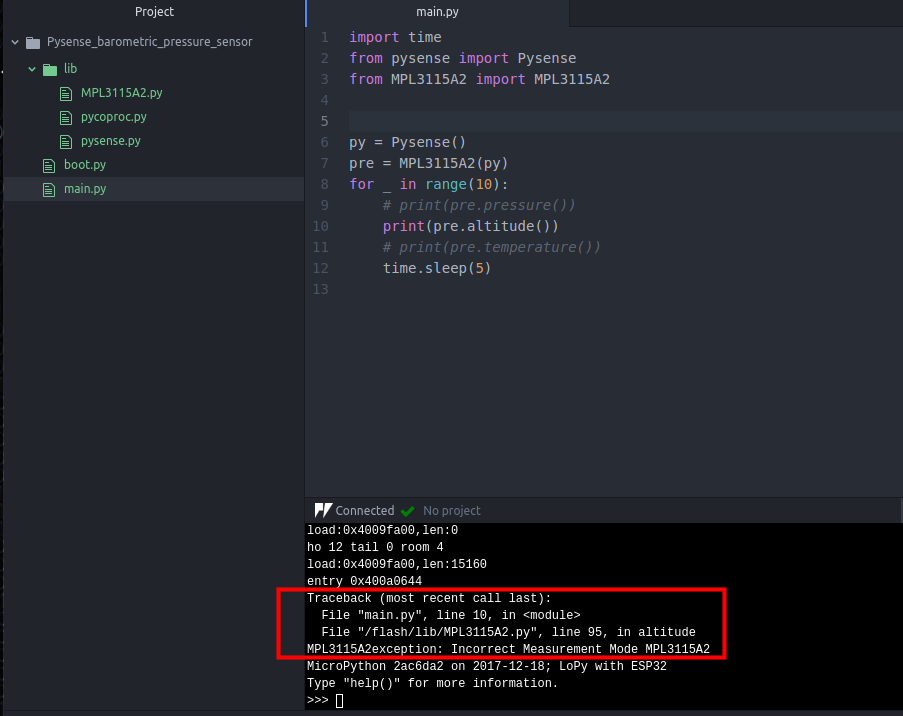

  • Implausible pysense pressure readings

    pysense pressure altitude
    3
    0 Votes
    3 Posts
    859 Views
    T
    @catalin - thanks for the quick response. That makes sense, and after instantiating just one instance of MPL3115A2, I’m getting a pressure around 85000 Pa, which is still a bit low (~25 inches of mercury vs 30 according to the national weather service), but might be explained by an unset sea level reference. Cheers, Tim
  • Max voltage input on USB port

    voltage usb
    6
    0 Votes
    6 Posts
    5k Views
    N
    Hi...i am a new user here. As per my knowledge 5.6v is out of spec and should be considered unsafe. Most likely it will work, since USB ports tend to be poorly regulated and these devices take that into account with lots of safety margin, but you risk your player doing so. You might want to look into putting together a 5v regulator circuit to be safe. complete pcb
  • PyTrack GPS - MemoryError

    pytrack lopy memoryerror gps
    1
    0 Votes
    1 Posts
    820 Views
    No one has replied
  • Pytrack documentation for GPS

    pytrack gps
    3
    0 Votes
    3 Posts
    1k Views
    D
    @jmarcelino Thanks for your respons, i figured as much but it is nice to have confirmation.
  • 0 Votes
    2 Posts
    1k Views
    J
    I suffer the same error with the new firmware version (1.10.2.b1). It seems they have not solved it until now... Have you found any solution?+ Thanks
